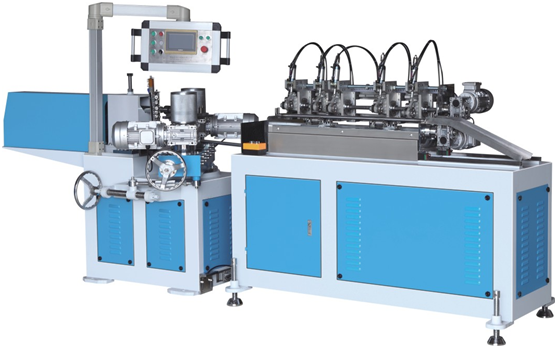

Cheap Paper Straw Making Machine 200 pieces per min

Cheap Paper Straw Making Machine 200 pieces per min

Cheap Paper Straw Making Machine 200 pieces per min
Cheap Paper Straw Making Machine 200 pieces per minCheap Paper Straw Making Machine 200 pieces per minCheap Paper Straw Making Machine 200 pieces per minCheap Paper Straw Making Machine 200 pieces per minCheap Paper Straw Making Machine 200 pieces per min
CategoriesPaper Straw Making Machine
AlbumView larger image
BrandChuangfeng
ModelCFXG-50 Metal Paint
Voltagecustomizable
After-sales Service ProvidedEngineers available to service machinery overseas
Speed1-50m/min
Auto Straw CollectorOptional
Place of OriginZhejiang, China
Power(W)6.0kw
Weight1200 kgs
Warranty12 Months
Capacity200pcs/min
Productpaper drinking straw
Raw materialpaper & glue
Machine BodyStainless steel or painting (optiona
Lead Time5-10 days after receiving the down-payment
FOB portNingbo / Shanghai / Lianyungang
Terms of PaymentL/C, T/T
Update Time2019-11-16
Detail Information

                 Technical Parameter

                   Control System

Paper Layer

3 layers

Motor

3.0kw (1.5kw * 2pcs)

Inner Diameter

4.3-12mm

Motion Controller

Panel Master

Wall Thickness

0.3-1mm

Operating Panel

Panel Master

Stable Speed

30-45m/min.

Language

English

Winding Nose

Two noses single belt

Inverter

3.7kw Schneider

Machine & parts

Stainless steel or Painting (Optional)

Electric Components

Schneider

Length fixing

Encoder

Pneumatic Components

Jingwei

Speed Control

By Inverter

Servo Motor

Schneider

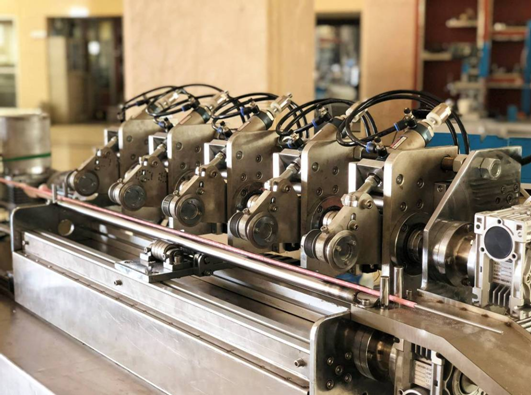

Cutting System

Multi-blades; 5 pcs online

Servo Driver

Schneider

Synchronism tracking cutting system

Servo motor synchronism tracking

Screw Rod

Shangyin

Slider

Shangyin

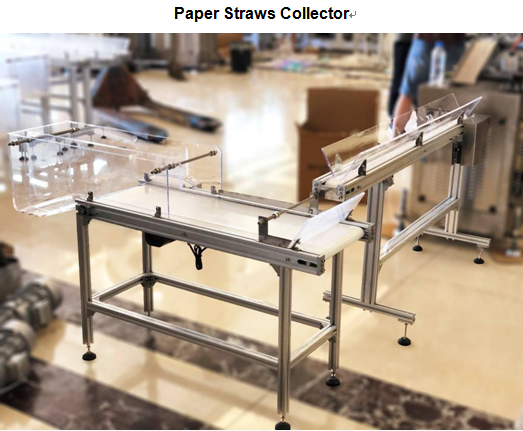

Paper straw collecting

Automatically

Bearing

Haerbin

Operator

1-2 person

Configuration

Working Air Pressure

0.6Mpa

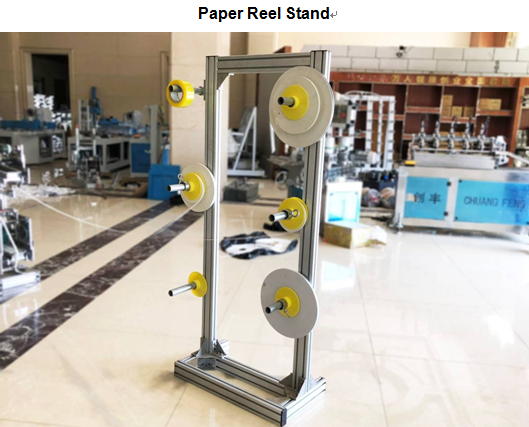

Paper Reel Stand

3 Layers

Power Supply

380V / 3phases / 50 Hz

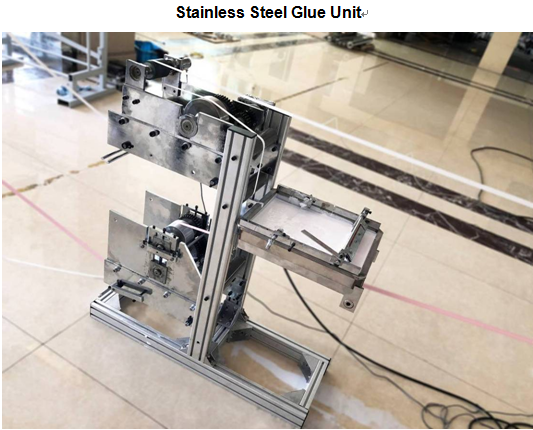

Gluing Unit

3 Layers

Measurement & Weight

Belt

5 Pieces

Measurement

3500*1500*1200mm

Mandrel Shaft

2 Pieces

Working Space

7000*5000mm

Extra blades

5 Pieces

Weight

1150kgs

Useful Tool

1 Set
