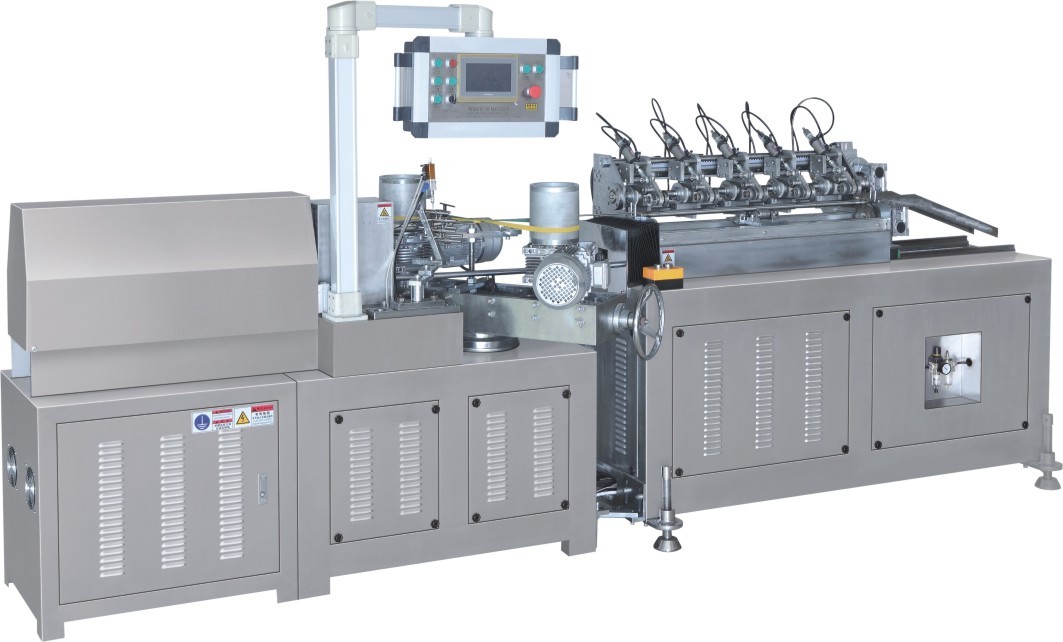

304 Stainless Steel Paper Straw Making Machine 200 pieces per min

Name: 304 Stainless Steel Paper Straw Making Machine 200 pieces per min
Brand: Chuangfeng
SKU: 18225232
Rating: 4.75 (10 reviews)

Categories	Paper Straw Making Machine
Brand	Chuangfeng
Model	CFXG-50 Stainless Steel 304
Voltage	customizable
After-sales Service Provided	Engineers available to service machinery overseas
Speed	1-50m/min
Auto Straw Collector	Optional
Place of Origin	Zhejiang, China
Power(W)	6.0kw
Weight	1200 kgs
Warranty	12 Months
Capacity	200pcs/min
Product	paper drinking straw
Raw material	paper & glue
Machine Body	Stainless steel or painting (optiona
Lead Time	5-10 days after receiving the down-payment
FOB port	Ningbo / Shanghai / Lianyungang
Terms of Payment	L/C, T/T
Update Time	May 30,2023

Detail Information

Technical Parameter		Control System
Paper Layer	3 layers	Motor	3.0kw (1.5kw * 2pcs)
Inner Diameter	4.3-12mm	Motion Controller	Panel Master
Wall Thickness	0.3-1mm	Operating Panel	Panel Master
Stable Speed	30-45m/min.	Language	English
Winding Nose	Two noses single belt	Inverter	3.7kw Schneider
Machine & parts	Stainless steel or Painting (Optional)	Electric Components	Schneider
Length fixing	Encoder	Pneumatic Components	Jingwei
Speed Control	By Inverter	Servo Motor	Schneider

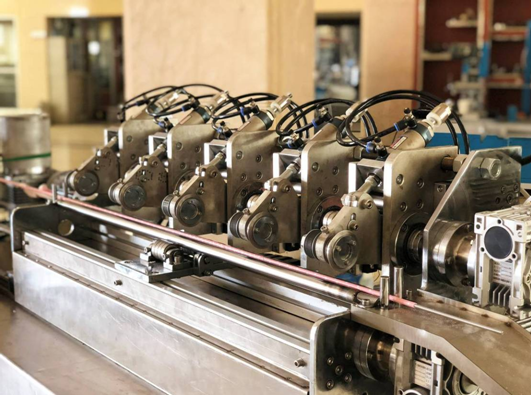

Cutting System	Multi-blades; 5 pcs online	Servo Driver	Schneider
Synchronism tracking cutting system	Servo motor synchronism tracking	Screw Rod	Shangyin
Synchronism tracking cutting system	Servo motor synchronism tracking	Slider	Shangyin

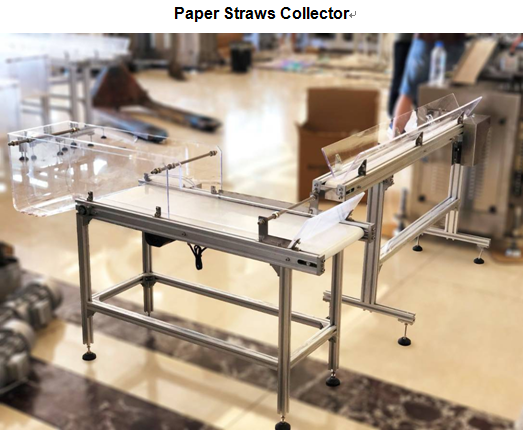

Paper straw collecting	Automatically	Bearing	Haerbin
Operator	1-2 person	Configuration

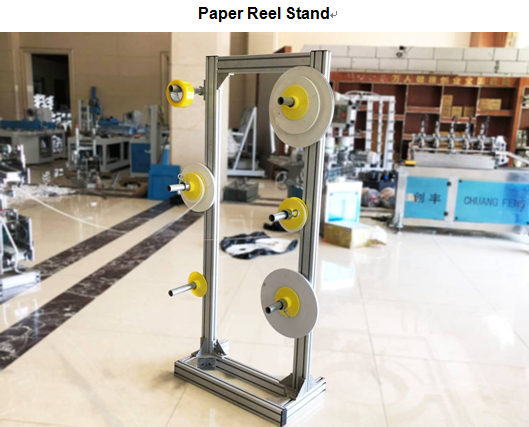

Working Air Pressure	0.6Mpa	Paper Reel Stand	3 Layers

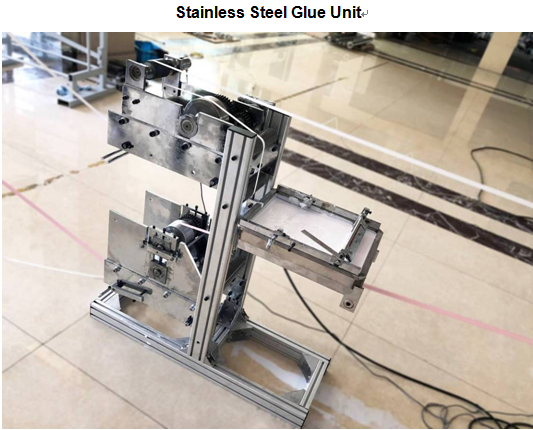

Power Supply	380V / 3phases / 50 Hz	Gluing Unit	3 Layers
Measurement & Weight		Belt	5 Pieces
Measurement	350015001200mm	Mandrel Shaft	2 Pieces
Working Space	7000*5000mm	Extra blades	5 Pieces
Weight	1150kgs	Useful Tool	1 Set
